Variable resistance control
Rheostats
Rotary & Slider, 25W to 500W
ETCC India manufactures rotary and slider rheostats from 25W to 500W at our Pune facility, established in 1994. Chassis and panel mounting for motor speed control, generator and UPS load testing, and industrial variable-resistance applications.

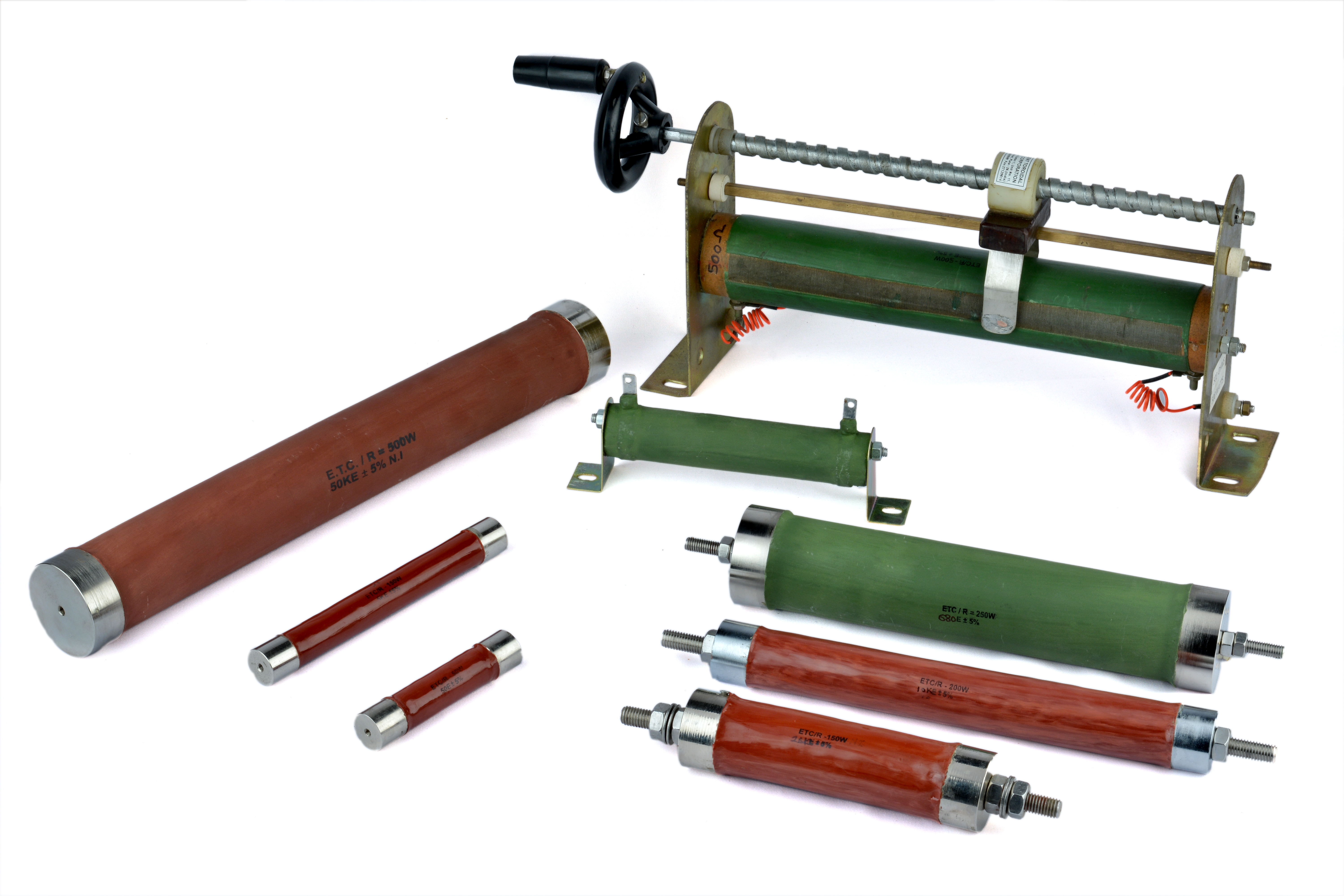

Product range
Wire wound resistors & rheostats
Precision wire wound elements on ceramic tube, ceramic body, and aluminium-housed formers — from 5W fixed resistors through 500W variable rheostats. Built for continuous duty in power electronics, motor control, and industrial test equipment, with testing aligned to IS 12063.
Wire wound resistors
Fixed wire wound resistors
Precision wire wound resistors from 5W to 200W in ceramic tube, ceramic body, and aluminium-housed constructions for snubbers, braking, ballast, and general power dissipation.
| Model | Resistance Range | Power Rating | Tolerance | Construction |
|---|---|---|---|---|
| WWR-5 | 0.1Ω – 5kΩ | 5W | ±5% | Ceramic tube |
| WWR-10 | 0.1Ω – 10kΩ | 10W | ±5% | Ceramic tube |
| WWR-25 | 0.5Ω – 25kΩ | 25W | ±5% | Ceramic tube |
| WWR-50 | 1Ω – 50kΩ | 50W | ±5% | Ceramic body |
| WWR-100 | 1Ω – 100kΩ | 100W | ±5% | Aluminum housed |
| WWR-200 | 5Ω – 50kΩ | 200W | ±10% | Aluminum housed |
Need a custom resistor or rheostat?
Share your resistance value, power rating, mounting style, and environmental limits — we build to drawing for OEM programmes, retrofit panels, and one-off engineering prototypes.
Rheostats
Rheostats
Variable wire wound resistors for current control, motor speed regulation, and laboratory use. Rotary and slider types with chassis-friendly mounting.
| Model | Resistance | Max Current | Power | Type |
|---|---|---|---|---|
| RH-25 | 1Ω – 1kΩ | 5A | 25W | Rotary |
| RH-50 | 1Ω – 2.5kΩ | 7A | 50W | Rotary |
| RH-100 | 5Ω – 5kΩ | 10A | 100W | Rotary |
| RH-300 | 10Ω – 10kΩ | 15A | 300W | Slider |
| RH-500 | 10Ω – 5kΩ | 25A | 500W | Slider |
Custom engineering
Custom resistor engineering
We manufacture wire wound resistors and rheostats to your specific requirements — from low-value precision elements to high-power load banks and matched sets for production lines.
Resistance & power
Custom resistance values and power ratings from low-watt precision to high-power load banks.
Mounting & terminals
Chassis, panel, and PCB mounting with terminal layouts matched to your enclosure and harness.
Temperature & wire
High-temperature wire options and coatings rated for demanding thermal environments.
Coatings
Vitreous enamel or silicone coating for insulation durability and environmental protection.
Non-inductive
Non-inductive winding available where low inductance is critical in switching and snubber circuits.
Enclosures
Custom enclosures and terminal configurations for OEM integration and field service access.
Applications
Where our resistors are used
Wire wound resistors and rheostats from ETCC serve power electronics, industrial drives, test equipment, and heating applications — manufactured and tested to demanding electrical and mechanical standards.
Motor speed control
Variable resistance for DC motor regulation, speed control, and rheostat-driven drive systems.
Load testing
Resistive loads for generator, UPS, and power supply test benches and commissioning.
Power electronics
Snubber, braking, and discharge resistors for converters, drives, and DC bus management.
Laboratory & heating
Adjustable standards, calibration loads, and industrial heating elements where stable power dissipation matters.
What is a Rheostat?
A rheostat is a variable wire wound resistor used to control current flow in a circuit by adjusting the effective resistance. Unlike fixed resistors, rheostats allow continuous adjustment — making them essential for applications requiring real-time power regulation.
ETCC rheostats use precision-wound resistance wire on high-temperature ceramic formers, with a sliding contact (wiper) that moves across the winding to vary resistance from near-zero to the full rated value.
Technical Specifications
| Parameter | Range |
|---|---|
| Power Rating | 25W to 500W |
| Resistance Range | 1 ohm to 10K ohm |
| Tolerance | plus/minus 5% to plus/minus 10% |
| Types | Rotary (knob-operated), Slider (linear track) |
| Mounting | Panel mount, chassis mount, bench-top |
| Construction | Wire wound on vitreous enamel ceramic tube |
| Operating Temperature | -55 degrees C to +350 degrees C |
Applications
- Motor speed control: Adjusting armature or field current in DC motors for variable-speed drives, conveyors, and winding machines.
- Generator load testing: Simulating electrical loads for diesel generator commissioning and periodic load bank testing.
- Voltage regulation: Fine-tuning output voltage in power supplies, battery chargers, and laboratory bench equipment.
- UPS load banks: Controlled resistive loads for uninterruptible power supply capacity verification and burn-in testing.
- Educational and laboratory: Variable resistance for physics experiments, Wheatstone bridge circuits, and electrical engineering training equipment.
Rheostat vs Fixed Resistor
A fixed wire wound resistor dissipates a set amount of power at a constant resistance value. A rheostat provides the same wire wound construction and power handling but adds a moveable wiper contact, allowing the operator to continuously vary resistance from minimum to maximum during operation.
Choose a rheostat when your application requires real-time adjustment — such as motor speed trimming, voltage calibration, or load simulation. Choose a fixed resistor when the resistance value is determined at design time and does not need to change during operation.
